MORTH & IRC Compliant
Manufactured strictly in adherence with Ministry of Road Transport & Highways Clause 811.
Superior Impact Cushioning
High tensile Fe 410 steel cold-formed into corrugated W-profile to absorb kinetic crash energy.
Heavy Zinc Galvanization (550 g/m²)
Centrifuged hot-dip zinc coating offering 25+ years rust-free performance on open highways.
Turnkey Highway Consignments
Complete kits (beams, posts, spacers, anchor bolts, end caps) dispatched directly to NHAI sites.
W-Beam Crash Barrier Components, Dimensions & Weight Specifications
Specifications for W-Beam Guardrails, C-Channel Posts, Spacers, and End Terminals complying with MORTH Clause 811.
W-Beam Crash Barrier Components, Dimensions & Weight Specifications
Ready Stock Inventory| Component Description | Dimensions / Profile (mm) | Raw Material Grade | Zinc Coating (g/m²) | Weight (Approx) | Instant Quote |
|---|---|---|---|---|---|
| W-Beam Guardrail (3mm) | 4318 x 312 x 85 mm (3.0mm) | Fe 410 / IS 2062 | 550 g/m² (80 Microns) | 43.5 kg / Pc | |
| W-Beam Guardrail (2.8mm) | 4318 x 312 x 85 mm (2.8mm) | Fe 410 / IS 2062 | 550 g/m² (80 Microns) | 40.6 kg / Pc | |
| Thrie-Beam Guardrail | 4318 x 506 x 85 mm (3.0mm) | Fe 410 / IS 2062 | 550 g/m² (80 Microns) | 65.0 kg / Pc | |
| C-Channel Post | 150 x 75 x 5 mm (1900mm L) | IS 2062 E250 | 550 g/m² (80 Microns) | 18.5 kg / Pc | |
| Spacer / Offset Bracket | 150 x 75 x 5 mm (330mm L) | IS 2062 E250 | 550 g/m² (80 Microns) | 3.2 kg / Pc | |
| End Terminal / Fish Tail | Curved W-Beam Section | IS 2062 / Fe 410 | 550 g/m² (80 Microns) | 8.5 kg / Pc | |
| Fasteners (M16 Button Head) | M16 x 35 / 40 / 50 mm | Class 8.8 / 4.6 Galvanized | Hot Dip Galvanized | Per Set (Nut + Washer) | |
| Reflector / Delineator | Trapezoidal Acrylic / PMMA | IRC 79 Compliant | UV Coated White/Red | Per Pc |
W-Beam Crash Barriers & Highway Safety Guardrail Engineering
Reliable primary and secondary steel distribution directly from Central India's industrial heartland to project sites across PAN-India.
Metal Crash Barriers—predominantly the cold-roll-formed W-Beam and Thrie-Beam profiles—are the primary passive safety defense installed along national expressways, mountain ghat roads, bridges, and highway medians. Fully complying with MORTH specifications and AASHTO M180 Class A Type II standards, these guardrails absorb vehicle impact energy by gradual plastic deformation while redirecting errant vehicles safely along the travel lane.
Engineered from high-ductility Fe 410 structural steel, every beam, C-channel post, and spacer undergoes full chemical descaling and hot-dip galvanization with a minimum zinc coating weight of 550 g/m² (average 80 microns). Designed with modular standard punching centers (3810mm effective length) for rapid on-site assembly.

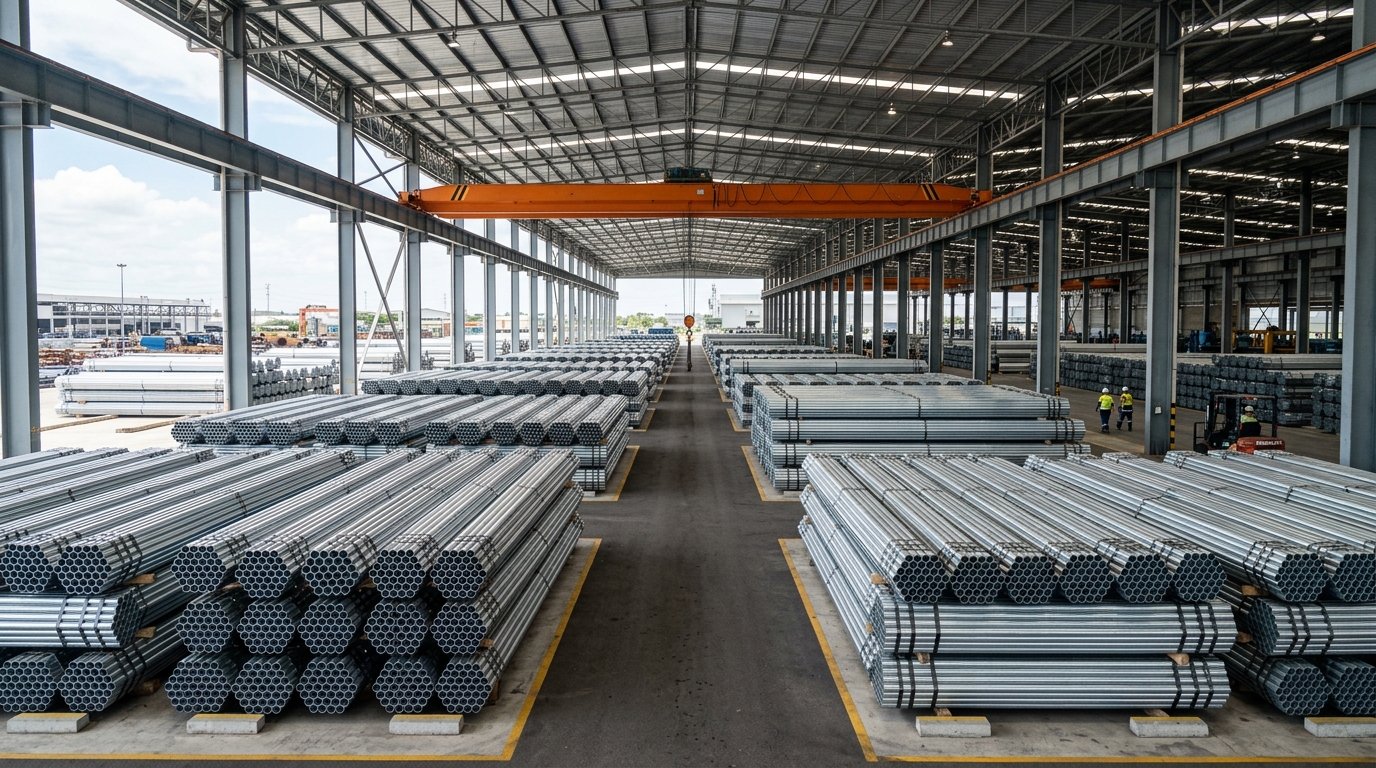

Single-Source Stockyard
Comprehensive ready inventory of structural sections, pipes, rebars & coils under one roof.
100% Certified Metallurgy
Authentic MTC with heat numbers, chemical ladle reports & mechanical strength compliance.

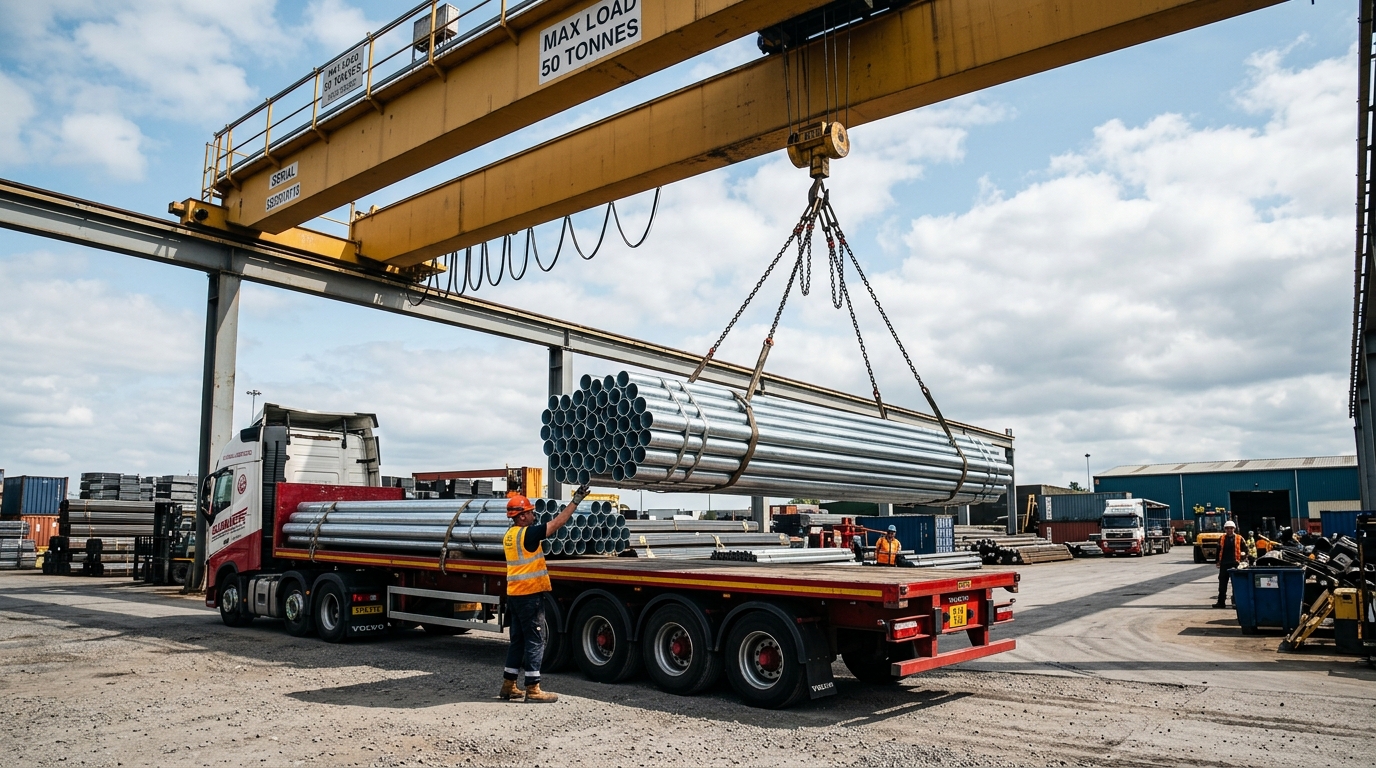

Express Trailer Dispatches
Multi-axle vehicle logistics from Birgaon / Urla industrial yards across Chhattisgarh, MP & India.
Commercial Dispatch & Quality Assurance
Strict quality gates followed for every truckload leaving our yards
BOQ & Mill Grade Verification
Precision size matching against client structural specifications (IS 2062, IS 1239, IS 1786).
Dimension & Surface Inspection
Dimensional tolerance checking (+/- rolling margin), squareness, and visual defect testing.
100-Ton Tare & Gross Digital Weighing
Calibrated electronic weighbridge slips for 100% accurate billing with zero weight discrepancies.
GST Invoicing, E-Way Bill & MTC Pack
Comprehensive commercial compliance documentation handed to transporter before departure.
Trusted by Leading Contractors & EPC Builders
Real procurement feedback from industrial infrastructure enterprises, fabricators, and project engineers sourcing W-Beam Crash Barriers & Highway Guardrails from crashbarriers.in.
We have been sourcing W-Beam Crash Barriers & Highway Guardrails from crashbarriers.in for our industrial warehouse shed projects. Weighbridge slips match the exact tare & gross with zero weight discrepancy, and Mill Test Certificates (MTC) are handed over promptly before unloading. Exemplary commercial transparency.
Getting authentic mill-certified W-Beam Crash Barriers & Highway Guardrails with prompt multi-axle trailer dispatches to our Maharashtra infrastructure sites has streamlined our BOQ procurement. Direct mill pricing saved us 4-6% over local retail stockists.
In high-specification infrastructure construction, material compliance is paramount. The team at crashbarriers.in consistently provides prime W-Beam Crash Barriers & Highway Guardrails with ultrasonic test verification and complete chemical ladle analysis reports. Deliveries are always on schedule.
Frequently Asked Questions
Key technical and commercial answers regarding W-Beam Crash Barriers & Highway Guardrails specifications and supply.
A standard W-Beam has a total length of 4318mm and an effective center-to-center post spacing length of 3810mm. Standard thicknesses are 3.0mm (heavy traffic) and 2.8mm (medium traffic).
The spacer holds the W-beam guardrail approximately 150-200mm away from the vertical post, preventing vehicle wheels from snagging directly on the post during impact.
Under MORTH Clause 811, all cold-rolled components must be hot-dip galvanized with a minimum 550 grams per square meter (g/m²) zinc mass, ensuring maximum outdoor durability.
Yes, every order includes matching C-posts, spacers, high-tensile hot-dip galvanized M16 button-head bolts, nuts, washers, and retro-reflective delineators.
We maintain rolling capacity and inventory to supply 50 to 500 kilometers of crash barrier systems per month across India.
